Home > Products > Integrated Circuits (ICs) > Clock/Timing - Real Time Clocks > DS1685EN-3+T&R

DS1685EN-3+T&R

Manufacturer Part Number DS1685EN-3+T&R
Manufacturer Maxim Integrated
Description IC RTC CLK/CALENDAR PAR 24-TSSOP
Lead Free Status / RoHS Status Lead free / RoHS Compliant
DS1685EN-3+T&R Datasheets DS1685, 87
DS1685EN-3+T&R Price Request a quote

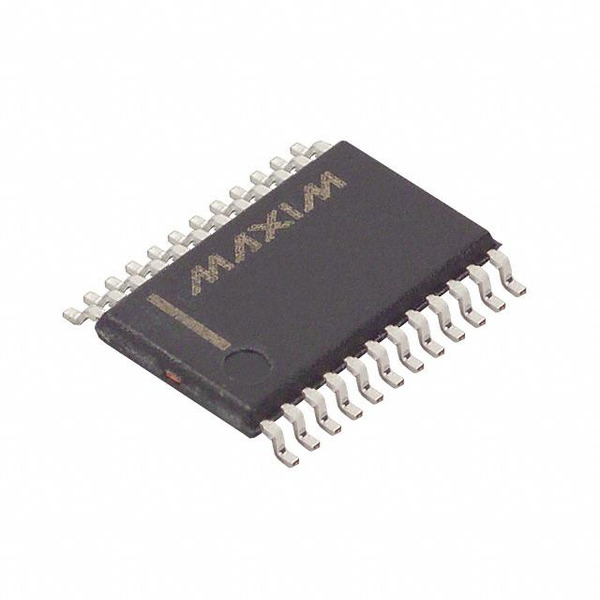

DS1685EN-3+T&R
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Specifications of DS1685EN-3+T&R

Voltage - Supply, Battery2.5 V ~ 3.7 V
Voltage - Supply2.7 V ~ 3.7 V
TypeClock/Calendar
Time FormatHH:MM:SS (12/24 hr)
Supplier Device Package24-TSSOP
Series-
PackagingTape & Reel (TR)
Package / Case24-TSSOP (0.173", 4.40mm Width)
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Moisture Sensitivity Level (MSL)1 (Unlimited)
Memory Size242B
Manufacturer Standard Lead Time12 Weeks
Lead Free Status / RoHS StatusLead free / RoHS Compliant
InterfaceParallel
FeaturesAlarm, NVSRAM, Square Wave Output, Y2K
Detailed DescriptionReal Time Clock (RTC) IC Clock/Calendar 242B Parallel 24-TSSOP (0.173", 4.40mm Width)
Date FormatYY-MM-DD-dd
Current - Timekeeping (Max)2mA @ 3V
Base Part NumberDS1685
We can supply Maxim Integrated part# DS1685EN-3+T&R, use the request quote form to request DS1685EN-3+T&R pirce and lead time. OEMs Electronics - OEMsec.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DS1685EN-3+T&R. The price and lead time for DS1685EN-3+T&R depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# DS1685EN-3+T&R. We look forward to doing business with you.
