Home > Products > Integrated Circuits (ICs) > Clock/Timing - Real Time Clocks > DS14285Q+

DS14285Q+

Manufacturer Part Number DS14285Q+
Manufacturer Maxim Integrated
Description IC RTC CLK/CALENDAR PAR 28-PLCC
Lead Free Status / RoHS Status Lead free / RoHS Compliant
DS14285Q+ Datasheets DS14285, 87
DS14285Q+ Price Request a quote
DS14285Q+

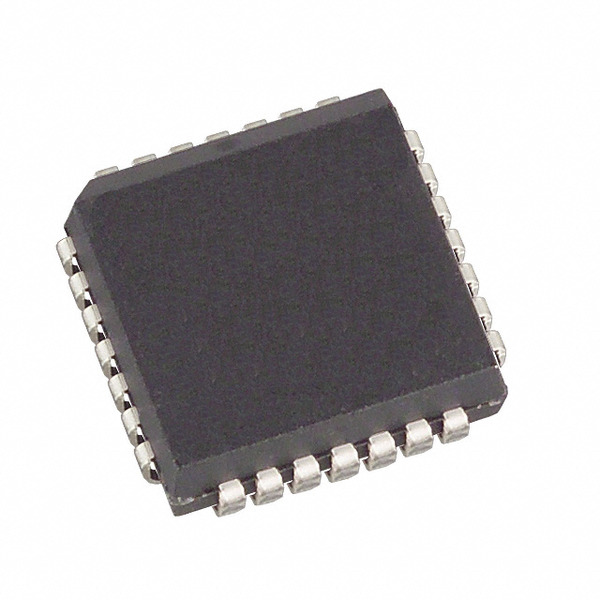

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Specifications of DS14285Q+

Voltage - Supply, Battery2.5 V ~ 3.6 V
Voltage - Supply4.5 V ~ 5.5 V
TypeClock/Calendar
Time FormatHH:MM:SS (12/24 hr)
Supplier Device Package28-PLCC (11.51x11.51)
Series-
PackagingTube
Package / Case28-LCC (J-Lead)
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Moisture Sensitivity Level (MSL)1 (Unlimited)
Memory Size114B
Lead Free Status / RoHS StatusLead free / RoHS Compliant
InterfaceParallel
FeaturesAlarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
Detailed DescriptionReal Time Clock (RTC) IC Clock/Calendar 114B Parallel 28-LCC (J-Lead)
Date FormatYY-MM-DD-dd
Current - Timekeeping (Max)0.5µA @ 4.5V ~ 5.5V
Base Part NumberDS14285
We can supply Maxim Integrated part# DS14285Q+, use the request quote form to request DS14285Q+ pirce and lead time. OEMs Electronics - OEMsec.com is an independent stocking distributor of electronic components. With 3+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DS14285Q+. The price and lead time for DS14285Q+ depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# DS14285Q+. We look forward to doing business with you.
